52” 5-Blade Builder Fan with Optional Light Kit
AXCF8552-BN-MAP/WALAXCF8552-WH-WH/WPAXCF8552-ORB-ORBLK9334-PCLK9330-PCAXCF552
These fans deliver contemporary European styling along with comfort and excellent value. Unique design fans have an essence of class and destination.
Model numbers
| Model | Description |
|---|---|
| AXCF8552-BN-MAP/WAL | Standard Blade Package Maple/Walnut Blades |

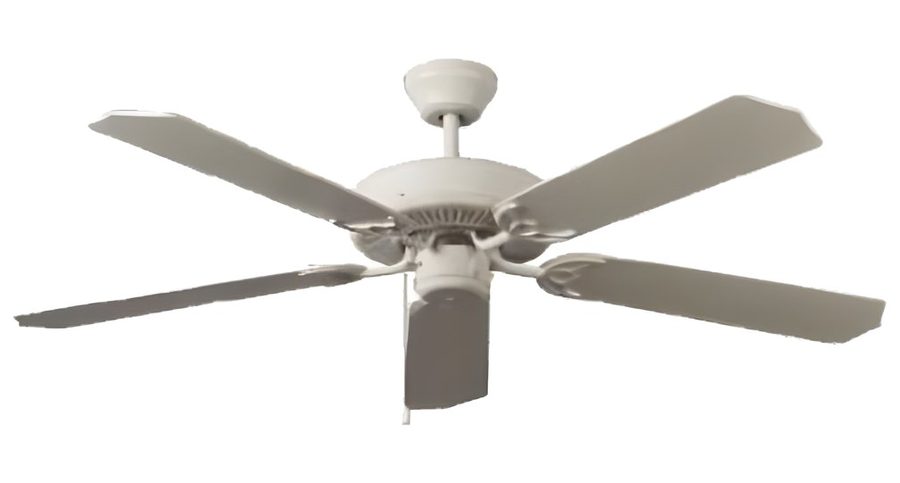

| AXCF8552-WH-WH/WP | Standard Blade Package White/Washed Pine Blades |

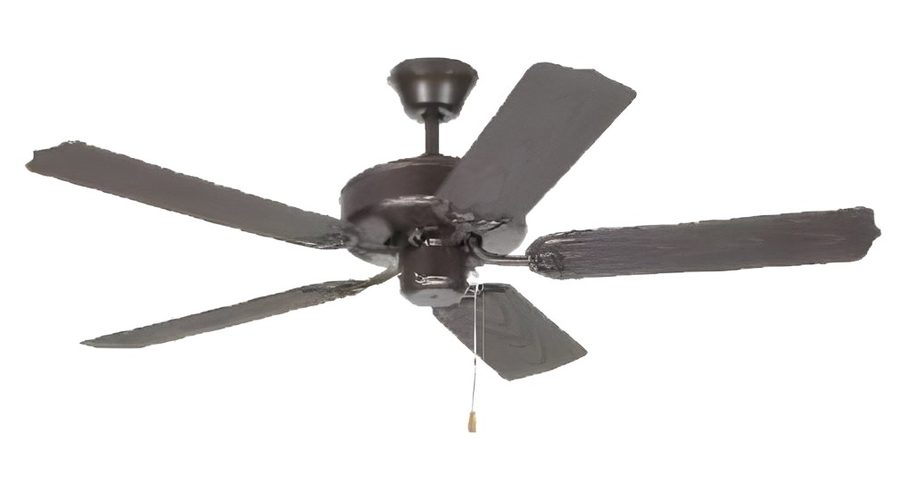

| AXCF8552-ORB-ORB | Standard Blade Package All ORB Blades |

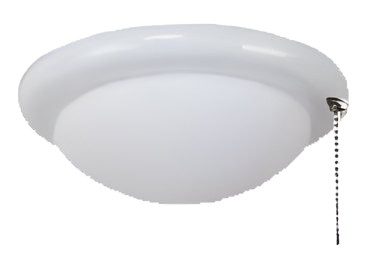

| LK9334-PC | Shown in WH |

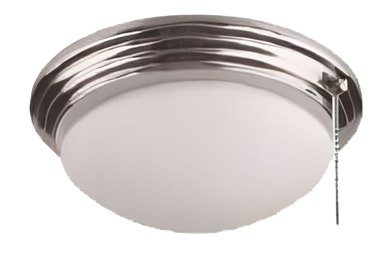

| LK9330-PC | Shown in BN |
| AXCF552 | 52” 5-Blade Builder Fan with Optional Light Kit |
Specifications
| ETL | Indoor Applications |
|---|---|
| Blade Sweep | 52” |
| Blades | 5 - Reversible - MDF |
| Lead Wire | 54” |
| Motor Type | AC - 153 x 13mm motor |
| Voltage | 120v |
| Blade Pitch | 11˚ |
| Downrod Length | 4.5” |
| Speeds | 3 - Reversible Motor |
| Light Kit | Adaptable (Sold Separately) |
| Socket | 2 x E26 10w LED Bulbs, 30K, 800lm (not included) |
| Control | Pull Chain |
| Performance - High | CFM 5,232; Watts 57.4; CFM/Watt 91.15 |
| Performance - Medium | CFM 3,496; Watts 33; CFM/Watt 105.94 |
| Performance - Low | CFM 2,254; Watts 13.6; CFM/Watt 165.74 |
| Light Kit LK9330-20W-30K-PC | Wattage 20w (2x 10W LED); Kelvin 30K; Lumens 1,600; CRI 80 |
| Light Kit LK9334-20W-30K-PC | Wattage 20w (2x 10W LED); Kelvin 30K; Lumens 1,600; CRI 80 |
Options and ordering
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
Blades
- MAP/WAL = Maple/Walnut
- DCH/WAL = Dark Cherry/Walnut
- WH/WP = White/Washed Pine
- WH/WO = White/Washed Oak
- ORB = Oil Rubbed Bronze
Light Kit
- LK9330-20W = 2x 10W E26
- LK9334-20W = 2x 10W E26
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- PC = Pull Chain
Ordering example
AXCF552-BN-MAP/WAL-LK9330-20W-30K-PC
