3-Blade Fans
AXCF9856AXCF9860AXCF9864
These fans deliver contemporary European styling along with comfort and excellent value. Unique design fans have an essence of class and destination.
Model numbers
| Model | Description |
|---|---|
| AXCF9856 | 54” Standard Blade Package All Brushed Nickel Blades |

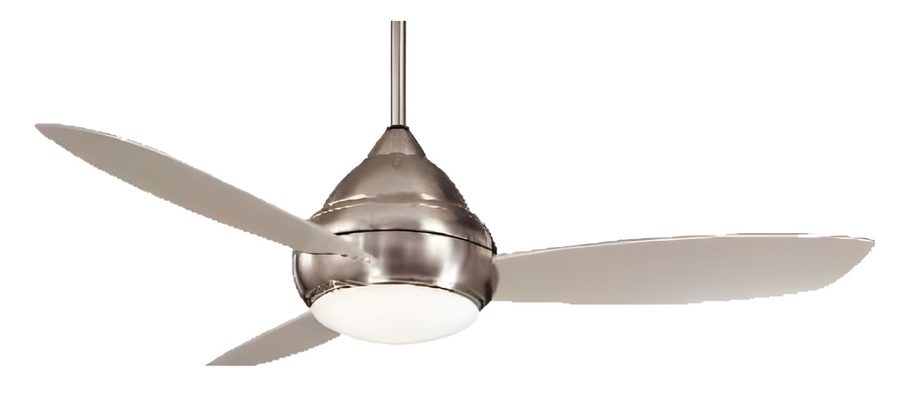

| AXCF9860 | 52” Standard Blade Package All Brushed Nickel Blades 20W Light Kit |

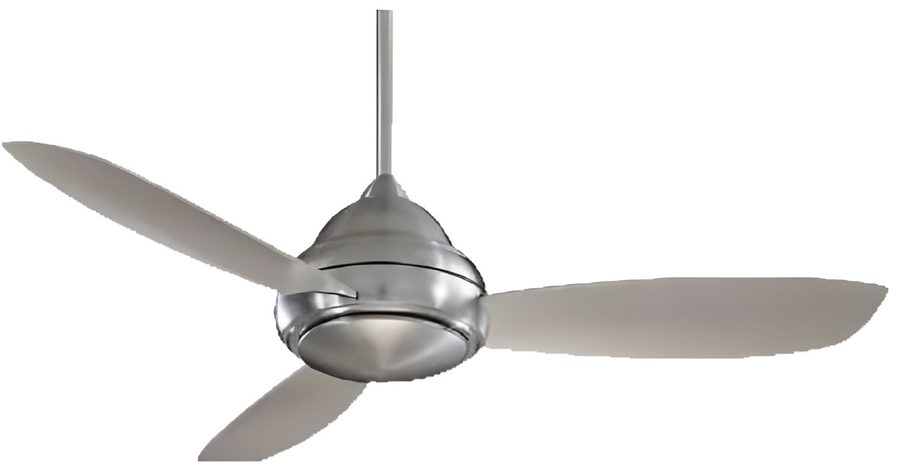

| AXCF9864 | 52” Standard Blade Package All Brushed Nickel Blades |
Specifications
| ETL | Indoor Applications |
|---|---|
| Blade Sweep | 98556 - 54”, 9860/9864 - 52” |
| Blades | 3 - Non Reversible - Plywood |
| Lead Wire | 54” |
| Motor Type | 9856 - AC - 153 x 18mm motor 9860/9864 - AC - 188 x 20mm motor |
| Voltage | 120v |
| Blade Pitch | 14˚ |
| Downrod Length | 6” |
| Light Kit | AXCF9860 - Satin White Glass Diffuser AXCF9864 - No Light Kit |
| Socket | 2 x E26 10w LED Bulbs, 30K, 800lm (not included) |
| Control | Wall Control |
| Performance (9856) - High | CFM 4,850; Watts 55.2; CFM/Watt 88 |
| Performance (9856) - Medium | CFM 3,280; Watts 29.1; CFM/Watt 113 |
| Performance (9856) - Low | CFM 1,865; Watts 13.3; CFM/Watt 140 |
| Performance (9860/9864) - High | CFM 5,156; Watts 60.3; CFM/Watt 85.5 |
| Performance (9860/9864) - Medium | CFM 3,561; Watts 38.3; CFM/Watt 92.9 |
| Performance (9860/9864) - Low | CFM 2,771; Watts 19.7; CFM/Watt 140 |
| Light Kit | Wattage 20w; Kelvin 30K; Lumens 1,600; CRI 80 |
Options and ordering
Finish
- BN = Brushed Nickel
Blades
- BN = Brushed Nickel
Light Kit
- Blank = No Light Kit
- 20W = 2x 10W E26
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- SWC = Standard Wall Control
- DWC = Dimmable Wall Control
Ordering example
AXCF9860-BN-BN-20W-30K-SWC
