52” 3-Blade Fan
AXCF9830AXCF9830AXCF9830
These fans deliver contemporary European styling along with comfort and excellent value. Unique design fans have an essence of class and destination.
Model numbers
| Model | Description |
|---|---|
| AXCF9830 | Standard Blade Package Brushed Nickel w/ Walnut Blades |
| AXCF9830 | Standard Blade Package Brushed Nickel w/ BN Blades |
| AXCF9830 | Standard Blade Package White w/ White Blades |
Specifications
| ETL | Indoor Applications |
|---|---|
| Blade Sweep | 52” |
| Blades | 3 - Non Reversible - ABS |
| Lead Wire | 76” |
| Motor Type | AC - 172 x 20mm motor |
| Voltage | 120v |
| Blade Pitch | 14˚ |
| Downrod Length | 6” |
| Light Kit | Integrated light kit with 15w LED and frosted opal glass diffuser |
| Control | Wall Control |
| Performance - High | CFM 5,982; Watts 71.57; CFM/Watt 85 |
| Performance - Medium | CFM 3,889; Watts 31.59; CFM/Watt 123 |
| Performance - Low | CFM 2,264; Watts 13.37; CFM/Watt 169 |
| Light Kit | Wattage 15w; Kelvin 30K; Lumens 1,600; CRI 80 |
Options and ordering
Finish

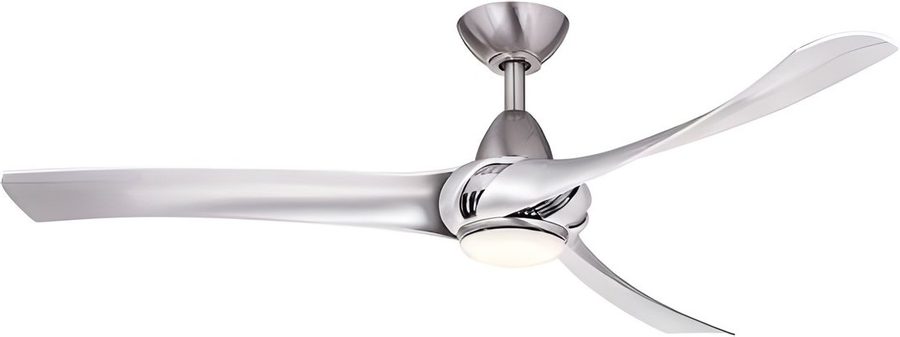

- BN = Brushed Nickel

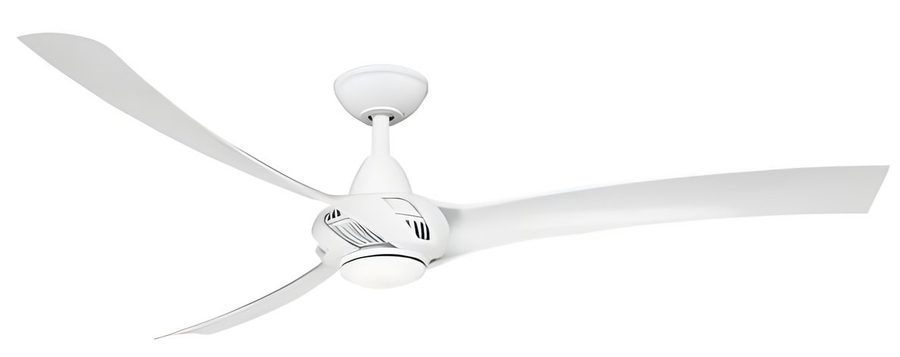

- WH = White
Blades
- WAL = Walnut
- BN = Brushed Nickel
- WH = White
Light Kit
- 15W = 15W Integrated LED
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- SWC = Standard Wall Control
- DWC = Dimmable Wall Control
Wall Controls
- DWC = Fan and Light Wall Control (AXWS-200): 4 Speed Control; Dual Slide; White finish; Dimmer; H - 4.625" W - 2.75"; 120V/60Hz
- SWC = Fan and Light Wall Control (AXWS-202): 3 Speed Control; On/Off Light Control; White finish
Ordering example
AXCF9830-BN-WAL-17W-30K-SWC
