52” 3 and 4-Blade Fans
AXCF822AXCF9822AXCF821AXCF9821
These fans deliver contemporary European styling along with comfort and excellent value. Unique design fans have an essence of class and destination.
Model numbers
| Model | Description |
|---|---|
| AXCF822 | 4 Blade Fan Standard Blade Package All Blade Finishes Pull Chain Control |

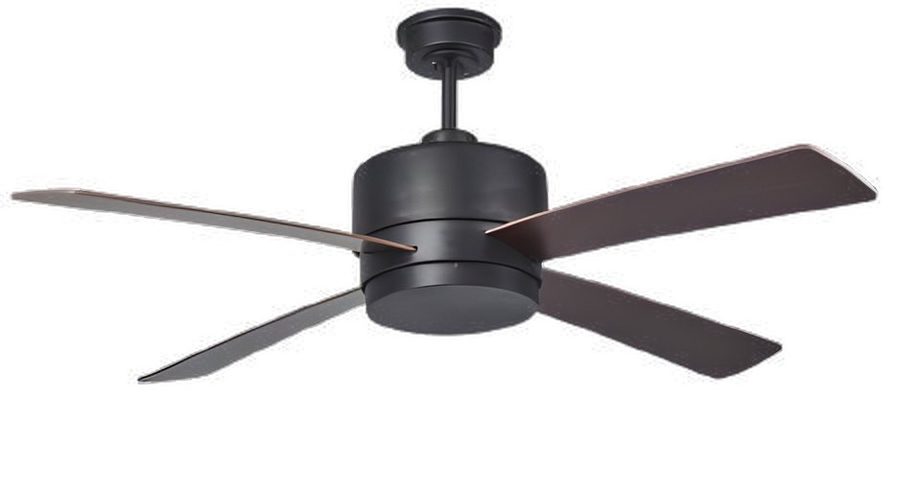

| AXCF9822 | 4 Blade Fan Standard Blade Package All Blade Finishes Wall Control |

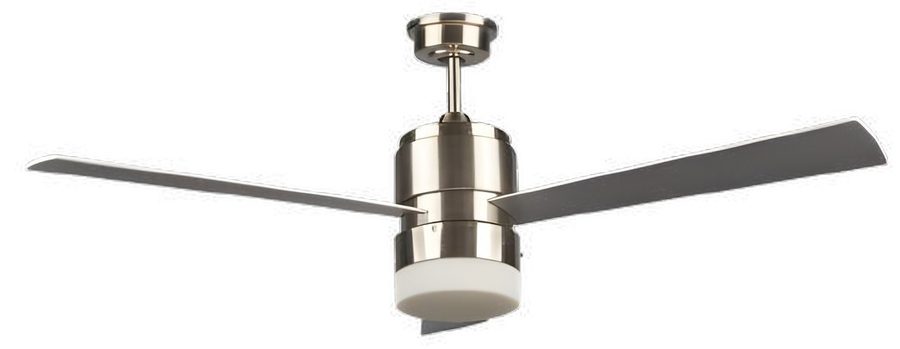

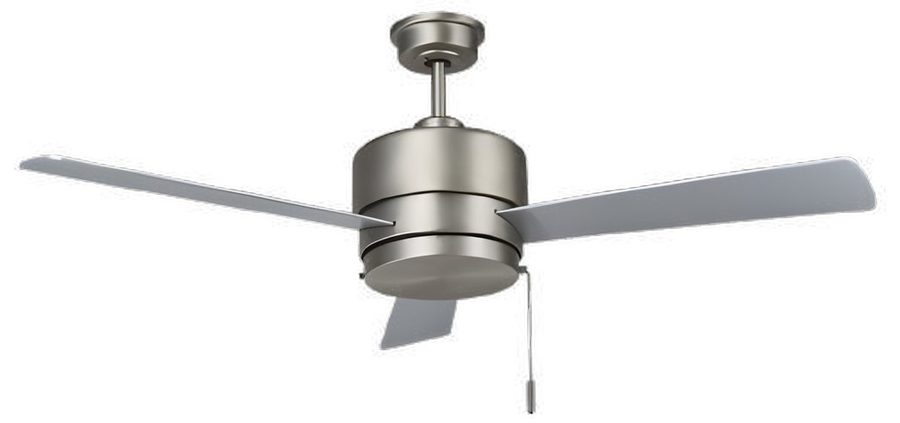

| AXCF821 | 3 Blade Fan Standard Blade Package All Blade Finishes Pull Chain Control |
| AXCF9821 | 3 Blade Fan Standard Blade Package All Blade Finishes Wall Control |
Specifications
| ETL | Indoor Applications |
|---|---|
| Blade Sweep | 52” |
| Blades | 3/4 - Reversible - ABS |
| Lead Wire | 54” |
| Motor Type | AC - 153 x 18mm motor |
| Voltage | 120v |
| Blade Pitch | 14˚ |
| Downrod Length | 6” |
| Speeds | 3 - Reversible Motor |
| Light Kit | None |
| Control | Pull Chain / Wall Control |
| Performance - High | CFM 4,850; Watts 55.2; CFM/Watt 88 |
| Performance - Medium | CFM 3,280; Watts 29.1; CFM/Watt 113 |
| Performance - Low | CFM 1,865; Watts 13.3; CFM/Watt 140 |
Options and ordering
Finish
- BN = Brushed Nickel
- CH = Chrome
- ORB = Oil Rubbed Bronze
- BK = Black
- WH = White
Blades
- BN = Brushed Nickel
- WAL = Walnut
- ORB = Oil Rubbed Bronze
- BK = Black
- WH = White
Light Kit
- Blank = No Light Kit
- 20W = 2x 10W E26
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- SWC = Standard Wall Control
- DWC = Dimmable Wall Control
Wall Controls
- DWC = Fan and Light Wall Control (AXWS-200): 4 Speed Control; Dual Slide; White finish; Dimmer; H - 4.625" W - 2.75"; 120V/60Hz
- SWC = Fan and Light Wall Control (AXWS-202): 3 Speed Control; On/Off Light Control; White finish
Ordering example
AXCF9822-BN-WAL-SWC
