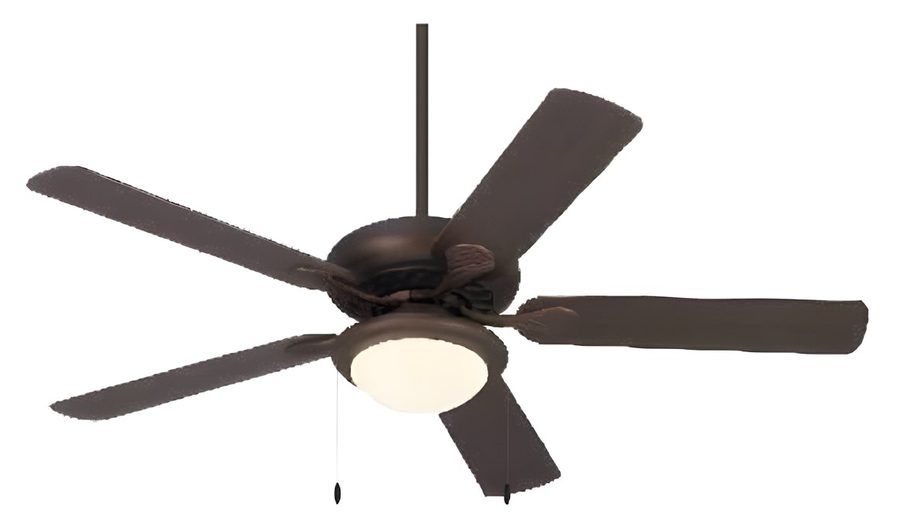

52” 5-Blade Fan with Optional Light Kit
AXCF820-BN-BN-AXLK9334BNAXCF820-ORB-ORB-AXLK9334ORBAXCF820
These fans deliver contemporary European styling along with comfort and excellent value. Unique design fans have an essence of class and destination.
Model numbers
| Model | Description |
|---|---|
| AXCF820-BN-BN-AXLK9334BN | Standard Blade Package All Brushed Nickel Blades |
| AXCF820-ORB-ORB-AXLK9334ORB | Standard Blade Package All Oil Rubbed Bronze Blades |
| AXCF820 | 52” 5-Blade Fan with Optional Light Kit |
Specifications
| ETL | Indoor Applications |
|---|---|
| Blade Sweep | 52” |
| Blades | 5 - Reversible - MDF |
| Lead Wire | 54” |
| Motor Type | AC - 153 x 13mm motor |
| Voltage | 120v |
| Blade Pitch | 12˚ |
| Downrod Length | 4” |
| Speeds | 3 - Reversible Motor |
| Light Kit | Adaptable (Sold Separately) |
| Socket | 2 x E26 10w LED Bulbs, 30K, 800lm (not included) |
| Control | Pull Chain |
| Performance - High | CFM 5,419; Watts 65.1; CFM/Watt 83.3 |
| Performance - Medium | CFM 3,454; Watts 32.3; CFM/Watt 107 |
| Performance - Low | CFM 2,306; Watts 1.8; CFM/Watt 195 |
| Light Kit LK9334-20W-30K-PC | Wattage 20w (2x 10W LED); Kelvin 30K; Lumens 1,600; CRI 80 |
Options and ordering
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
Blades
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
Light Kit
- Blank = None
- LK9334-20W = 2x 10W E26
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- PC = Pull Chain
Ordering example
AXCF820-BN-BN-LK9334-20W-30K-PC
