LED Designer Strip
AXUL810AXUL812AXUL814
- Ideal for apartments, motels, and condos. Perfect for kitchens, utility rooms, closets, schools, garages, and offices.

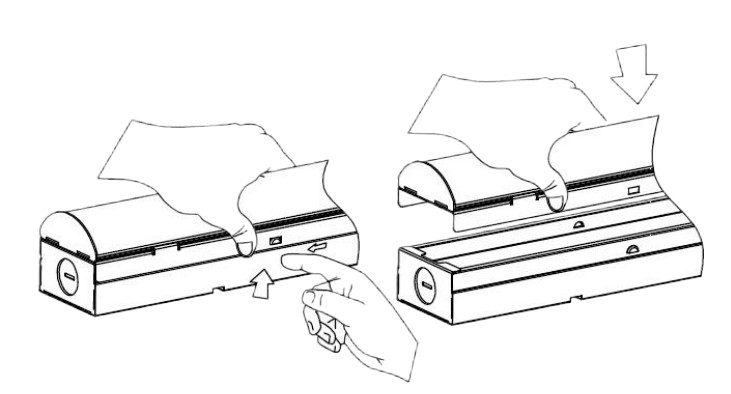

- Easy Open Access
- Suitable for damp location
Model data
| Part | Wattage | Lumens | CRI | Dimensions |
|---|---|---|---|---|
| AXUL810 | 20W | 2,300lm | 80 | 23.5”L x 2.375”W x 2.375”H |
| AXUL812 | 32W | 3,680lm | 80 | 45.875”L x 2.375”W x 2.375”H |
| AXUL814 | 60W | 6,900lm | 80 | 91.625”L x 2.375”W x 2.375”H |
Specifications
| UL or ETL Listing | Damp Locations |
|---|---|
| Housing | Heavy gauge cold rolled steel |
| Lens/Diffuser | Extruded Opal Polycarbonate |
| Voltage | 120v - 277v |
| Light Source | Integrated LED |
| CRI | 80 |
| Kelvin | Color/Kelvin Selectable Fixture 35K, 40K, 50K |
| EM Back-Up | 90 minute minimum operation |
| Dimmable | 0-10v |
| Mounting | Surface or Suspension Mount. |
Options and ordering
Wattage
- 20W = 20 watt Integrated LED
- 32W = 32 watt Integrated LED
- 60W = 60 watt Integrated LED
Kelvin/CCT
- CCT = CCT Selectable (35K, 40K, 50K)
Finish
- WH = White
Options
- MS = Microwave Sensor
- DMS Dimming Microwave Sensor
- SB = Sensor Box
- EM = 8W Emergency Back-up
Ordering example
AXUL810-20W-CCT-WH-MS
