LED Super-Slim Under Cabinet Puck Light
AXPK8001AXPK8003AXPK8004AXPKIT001
- Ideal for apartments, motels, and condos. Perfect for kitchens, utility rooms, closets, schools, garages, and offices.
- Available in packs of 1, 3, or 4 disk lights.
Model numbers
| Model | Description |
|---|---|

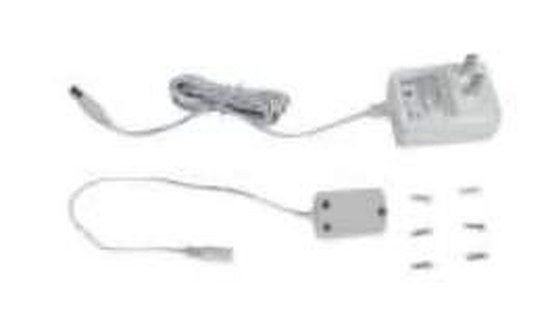

| AXPKIT001 | = 1 DC Adapter and 1 Power Supply. Dimmable and linkable up to 6 units. |
Model data
| Part | Wattage | Lumens | CRI | Dimensions |
|---|---|---|---|---|
| AXPK8001 | 3w (1x 3w Disk) | 240lm | 80 | 2.5”W x 0.25”H |
| AXPK8003 | 9w (3x 3w Disks) | 720lm | 80 | 2.5”W x 0.25”H |
| AXPK8004 | 12w (4x 3w Disks) | 960lm | 80 | 2.5”W x 0.25”H |
Specifications
| UL or ETL Listing | ETL, Damp Locations |
|---|---|
| Dimensions | 2.5”W x 0.25”H |
| Housing | Die Cast Aluminum |
| Lens/Diffuser | Polycarbonate |
| Voltage | DC 12v |
| Light Source | Integrated LED |
| Wattage | 3w, 9w, 12w |
| Lumens | 240, 700, 960 |
| CRI | 80 |
| Kelvin | 30K, 40K |
| Dimmable | 0-10v |
| Mounting | Surface Mount. All necessary hardware included. |
Options and ordering
Wattage
- 3W = 3 watts
- 9W = 9 watts
- 12W = 12 watts
Kelvin/CCT
- 30K = 3000˚Kelvin
- 40K = 4000˚Kelvin
Finish
- WH = White
- BK = Black
Ordering example
AXPK8001-3W-30K-BK
