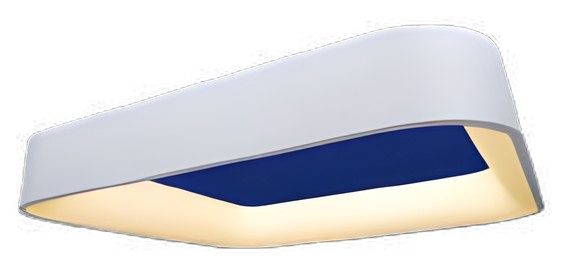

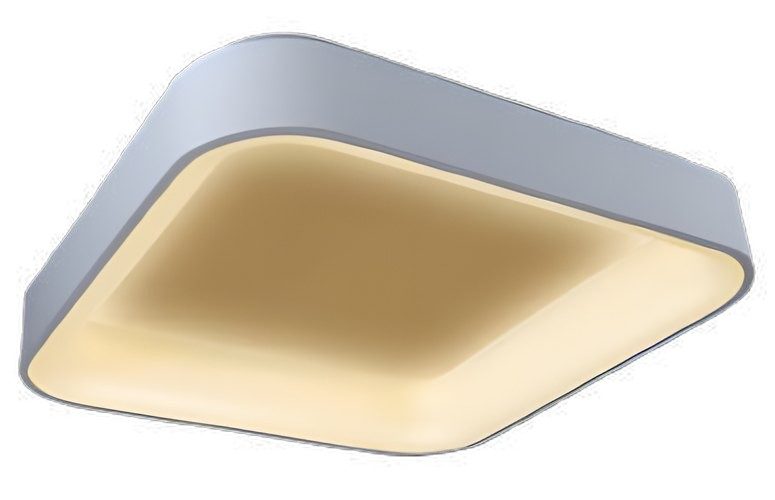

Architectural LED Moon Light
AXLL202-15WAXLL202-25WAXLL202-36WAXLL202-50W
- Moon Light with a classic shape and proportions, widely used for general lighting applications.
- Optional acoustic felt for sound dampening in offices and large open spaces. Available in 34 unique colors upon request.
Model data
| Part | Wattage | Lumens | Kelvin | CRI | Dimensions |
|---|---|---|---|---|---|
| AXLL202-15W | 15W | 1050lm | 30K, 40K, 50K | >80 | 3.5”H x 14.2”W |
| AXLL202-25W | 25W | 1750lm | 30K, 40K, 50K | >80 | 3.5”H x 17.7”W |
| AXLL202-36W | 36W | 2520lm | 30K, 40K, 50K | >80 | 3.5”H x 23.6”W |
| AXLL202-50W | 50W | 3500lm | 30K, 40K, 50K | >80 | 3.5”H x 31.5”W |
Specifications
| UL or ETL Listing | Damp Locations |
|---|---|
| Voltage | 120v-277v |
| Light Source | Integrated LED |
| CRI | >80 |
| Kelvin | 30K, 35K, 40K, 50K |
| Dimmable | 0-10v |
| Mounting | Pendant or surface mounted. |
Options and ordering
Ordering prefix
- AXLL202
Wattage
- 15W = 15 watt
- 25W = 25 watt
- 36W = 36 watt
- 50W = 50 watt
Kelvin/CCT
- 30K = 3000˚K
- 40K = 4000˚K
- 50K = 5000˚K
Finish
- WH = White
- BK = Black
- SI = Silver
Mounting
- PM = Pendant Mount
- SM = Surface Mount
Options
- AF = Acoustic Felt
Acoustic Felt Color (AF, from color chart)
- 001
- 002
- 003
- 004
- 005
- 006
- 007
- 008
- 009
- 011
- 012
- 013
- 014
- 016
- 017
- 018
- 019
- 020
- 021
- 022
- 024
- 025
- 028
- 029
- 031
- 033
- 034
- 035
- 036
- 038
- 040
- 042
- 043
- 044
Ordering example
AXLL202-25W-30K-WH-PM-AF008
