52” 5-Blade Builder Fan with Optional Light Kit
AXCF8600-BN-MAPAXCF8600-WH-WHAXCF8600-ORB-ORBAXCF8600-BK-BKAXCF8600
These fans deliver contemporary European styling along with comfort and excellent value. Unique design fans have an essence of class and destination.
Model numbers
| Model | Description |
|---|---|
| AXCF8600-BN-MAP | Standard Blade Package All Maple Blades |

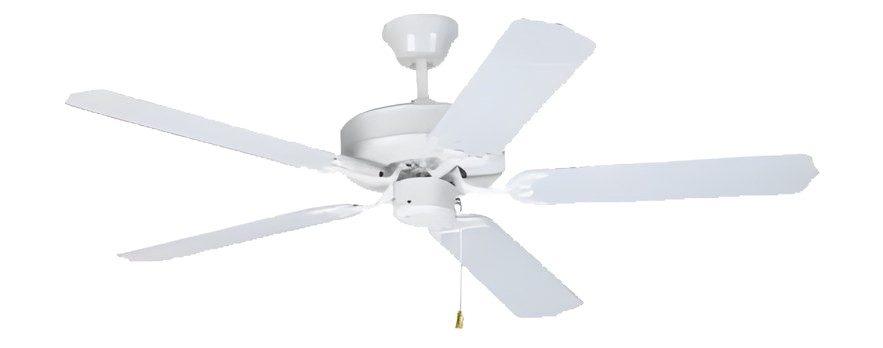

| AXCF8600-WH-WH | Standard Blade Package All White Blades |

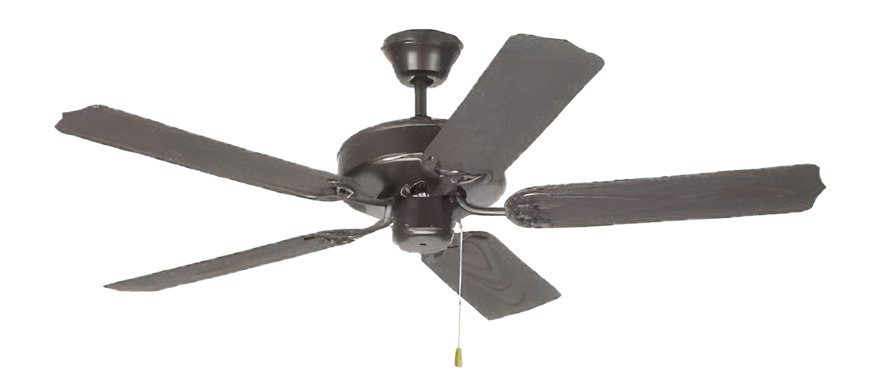

| AXCF8600-ORB-ORB | Standard Blade Package All Oil Rubbed Bronze Blades |

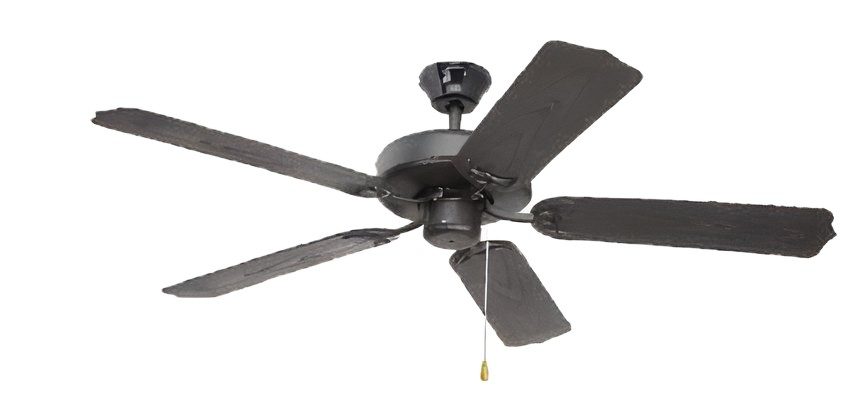

| AXCF8600-BK-BK | Standard Blade Package All Black Blades |
| AXCF8600 | 52” 5-Blade Builder Fan with Optional Light Kit |
Specifications
| ETL | Outdoor Applications |
|---|---|
| Blade Sweep | 52” |
| Blades | 5 - Non-Reversible - ABS |
| Lead Wire | 54” |
| Motor Type | AC - 153 x 13mm motor |
| Voltage | 120v |
| Blade Pitch | 12˚ |
| Downrod Length | 4” |
| Speeds | 3 - Reversible Motor |
| Light Kit | Adaptable (Sold Separately) |
| Socket | 2 x E26 10w LED Bulbs, 30K, 800lm (not included) |
| Control | Pull Chain |
| Performance - High | CFM 5,172; Watts 57.4; CFM/Watt 90 |
| Performance - Medium | CFM 3,486; Watts 33.2; CFM/Watt 105 |
| Performance - Low | CFM 2,257; Watts 13.3; CFM/Watt 169 |
| Light Kit LK9330-20W-30K-PC | Wattage 20w (2x 10W LED); Kelvin 30K; Lumens 1,600; CRI 80 |
| Light Kit LK9330-20W-30K-PC | Wattage 20w (2x 10W LED); Kelvin 30K; Lumens 1,600; CRI 80 |
Options and ordering
Finish
- BN = Brushed Nickel
- ORB = Oil Rubbed Bronze
- WH = White
- BK = Black
Blades
- MAP = Maple
- ORB = Oil Rubbed Bronze
- WH = White
- BK = Black
Light Kit
- Blank = None
- LK9330-20W = 2x 10W E26
- LK9334-20W = 2x 10W E26
Kelvin/CCT
- 30K = 3000˚Kelvin
Options
- PC = Pull Chain
Ordering example
AXCF8600-BN-MAP-LK9330-20W-30K-PC
