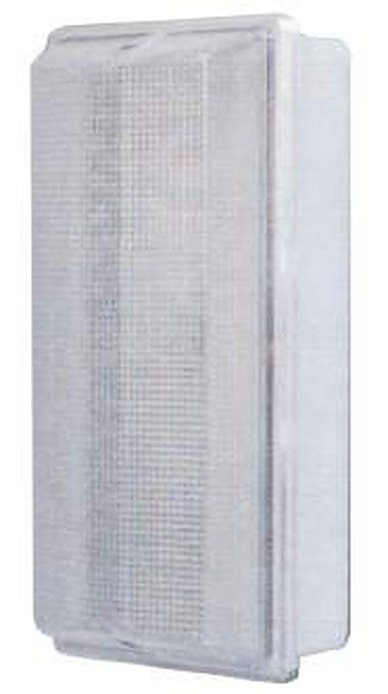

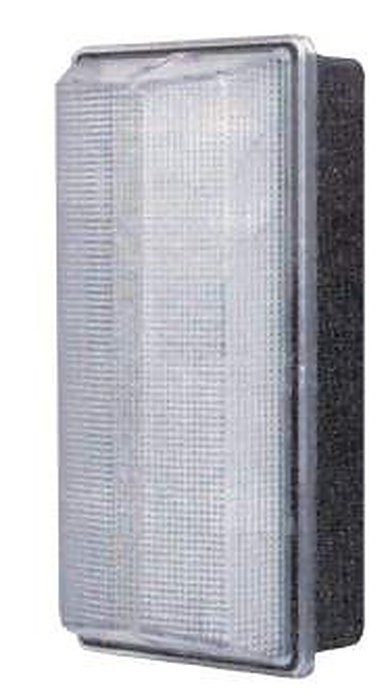

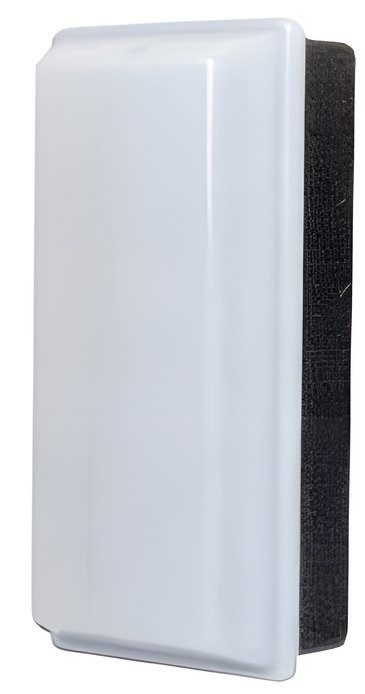

Decorative Wall Mount
AX5911AX5912AX5951AX5959
Ideal for entrances, walkways, rear doors, patios, multifamily, or single-family homes as well as commercial building applications.
Model data
| Part | Wattage | Lumens | CRI | Kelvin | Dimensions |
|---|---|---|---|---|---|
| AX5911 | 20w (2x 10w) | 1,600lm | >80 | 30K, 40K | 5.5”W x 11”H x 4”Ext. |
| AX5912 | 20w (2x 10w) | 1,600lm | >80 | 30K, 40K | 5.5”W x 11”H x 4”Ext. |
| AX5951 | 20w (2x 10w) | 1,600lm | >80 | 30K, 40K | 5.5”W x 11”H x 4”Ext. |
| AX5959 | 20w (2x 10w) | 1,600lm | >80 | 30K, 40K | 5.5”W x 11”H x 4”Ext. |
Specifications
| UL or ETL Listing | Wet Locations |
|---|---|
| Housing | Stamped Steel w/ Powder Coat |
| Lens | Polycarbonate |
| Voltage | AC 120v |
| Light Source | 10 watt LED A19 E26 Bulb (Sold Separately) |
| Mounting | Ceiling or wall mount. Knock-outs on both ends for continuous runs. Includes all necessary hardware. |
| Features | Bug Resistant / Applied Bug Gasket; High Impact / Vandal Resistant; Interchangeable Lenses and Bodies |
| Suggested lamps | LEDA110 • 30K • >80 CRI / LEDA112 • 40K • >80 CRI |
Options and ordering
Wattage
- 20W = 2x 10 watt LED A19
Kelvin/CCT
- 30K - 3000˚Kelvin
- 40K - 4000˚Kelvin
Finish
- BK = Black
- ORB = Oil Rubbed Bronze
Ordering example
AX5959-20W-30K-BK
