Carport Wall Mount
AX5138
- Ideal for entrances, walkways, rear doors, patios, multifamily, or single-family homes as well as commercial building applications.
- Easy Installation
Model data
| Part | Wattage | Lumens | CRI | Kelvin | Dimensions |
|---|---|---|---|---|---|
| AX5138 | 20w (2x 10w) | 1,400lm | >80 | 30K, 40K | 4.5”W x 10”H x 2.5”Ext. |
Specifications
| UL or ETL Listing | Wet Locations |
|---|---|
| Housing | Stamped Steel w/ Powder Coat |
| Lens | Clear Polycarbonate |
| Voltage | AC 120v |
| Light Source | 10 watt LED A19 E26 Bulb (Sold Separately) |

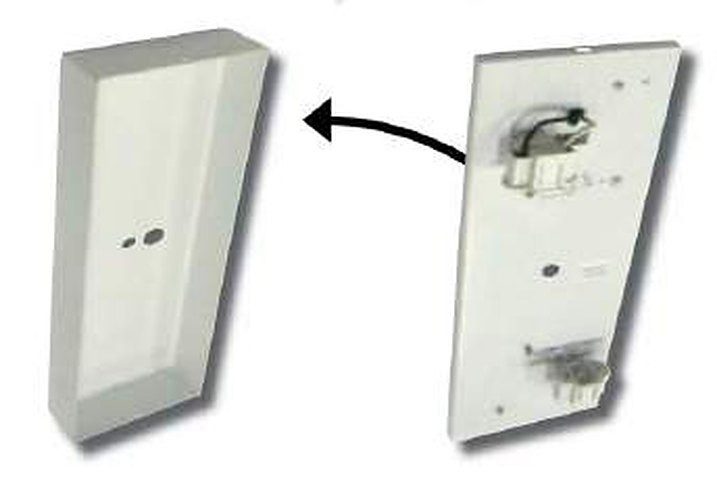

| Mounting | Ceiling or wall mount. Knock-outs on both ends for continuous runs. Includes all necessary hardware. |
| Suggested lamps | LED010 • 30K • >80 CRI / LED012 • 40K • >80 CRI |
Options and ordering
Finish
- WH = White
- BK = Black
Wattage
- 20W = 2x 10 watt LED A19
Kelvin/CCT
- 30K - 3000˚Kelvin
- 40K - 4000˚Kelvin
Options
- PC = Photocell
Ordering example
AX5138-WH-20W-30K
